Shell Commands reference

CleverMaps Shell is controlled solely by a set of predefined commands. These commands can be divided into 4 categories or workflow states. All commands and parameters are case-sensitive.

Each command can be further specified by parameters, which can have default values. Each parameter also has a "--" prefix, which is a technicality and is not mentioned in the tables below, for the sake of readability.

Parameters with string type take string input as a value if they are mentioned. Parameters with enum type have predefined enumeration of strings, which can be passed as a value. Parameters with boolean type can be passed either true, false or no value (=true).

Workflow states

Started - you have started the tool
Connected to server - you have successfully logged in to your account on a specific server
Opened project - you have opened a project you have access to
Opened dump - you have created dump, or opened an existing one

Started state

Log in as a user to CleverMaps with the correct credentials.

Parameter name	Type	Optionality	Description	Constraints
`accessToken`	string	OPTIONAL	generated CleverMaps access token (see how to get one)	stored in config file
`bearerToken`	string	OPTIONAL	JWT token generated after signing with limited 1h validity
`dumpDirectory`	string	OPTIONAL	directory where your dumps will be stored	stored in config file
`server`	string	OPTIONAL	server to connect to default = `https://secure.clevermaps.io`	stored in config file
`proxyHost`	string	OPTIONAL	proxy server hostname	stored in config file
`proxyPort`	integer	OPTIONAL	proxy server port	stored in config file
`s3AccessKeyId`	string	OPTIONAL	AWS S3 Access Key ID required for S3 upload (loadCsv --s3Uri)	stored in config file
`s3SecretAccessKey`	string	OPTIONAL	AWS S3 Secret Access Key required for S3 upload (loadCsv --s3Uri)	stored in config file

setup

Store your config and credentials in a file so you don't have to specify them each time you log in.

Parameter name	Type	Optionality	Description	Constraints
`accessToken`	string	OPTIONAL	generated CleverMaps access token (see how to get one)	stored in config file
`server`	string	OPTIONAL	server to connect to	stored in config file
`dumpDirectory`	string	OPTIONAL	directory where your dumps will be stored	stored in config file
`proxyHost`	string	OPTIONAL	proxy server hostname	stored in config file
`proxyPort`	integer	OPTIONAL	proxy server port	stored in config file
`s3AccessKeyId`	string	OPTIONAL	AWS S3 Access Key ID required for S3 upload (loadCsv --s3Uri)	stored in config file
`s3SecretAccessKey`	string	OPTIONAL	AWS S3 Secret Access Key required for S3 upload (loadCsv --s3Uri)	stored in config file

Connected to server

openProject

Open a project and set it as current. Opens the dump if it exists.

Parameter name	Type	Optionality	Description	Constraints
`project`	string	REQUIRED	Project ID to be opened

listProjects

List all projects available to you on the server.

Parameter name	Type	Optionality	Description	Constraints
`verbose`	boolean	OPTIONAL	specifies if the output should be more verbose
`share`	enum	OPTIONAL	list projects by share type	`[demo, dimension, template]`
`organization`	string	OPTIONAL	list projects by organization (organization ID)

createProject

Create a new project and open it.

Parameter name	Type	Optionality	Description
`title`	string	REQUIRED	title of the project
`description`	string	OPTIONAL	description of the project. A description can be formatted by markdown syntax.
`organization`	string	OPTIONAL	ID of the organization which will become the owner of the project

cloneProject

Clones project from source and open it. Cloning is handled on the server, so no data or metadata is transferred to the local Shell environment.

Parameter name	Type	Optionality	Description
`project`	string	REQUIRED	Project ID of the project from which new project will be cloned
`organization`	string	REQUIRED	ID of the organization which will become the owner of the project
`description`	string	OPTIONAL	description of the project. A description can be formatted by markdown syntax.
`title`	string	OPTIONAL	title of the project, if none provided defaults to = "Clone of [projectName]"

editProject

Edit project properties.

Parameter name	Type	Optionality	Description	Constraints
`project`	string	REQUIRED	Project ID of project to be edited
`newTitle`	string	OPTIONAL	new title of the project
`newDescription`	string	OPTIONAL	new description of the project
`newStatus`	string	OPTIONAL	new status of the project	`[enabled, disabled]`
`newOrganization`	string	OPTIONAL	new ID of the organization which will become the owner of the project

deleteProject

Delete an existing project.

Parameter name	Type	Optionality	Description	Constraints
`project`	string	REQUIRED	Project ID of the project to be deleted

Opened project

importProject

Allows you to import:

project from a server (e.g. a data dimension)
a local dump of a project
perform import on the server

You can also import a part of a project with one of the parameters (dashboards, datasets, indicators, indicatorDrills, markers, markerSelectors, metrics, views). If you specify none of these parameters, the whole project will be imported. Every time you specify a datasets parameter, corresponding data will be imported.

Before each import, validate command is called in the background. If there are any model validation violations in the source project, the import is stopped, unless you also provide the --force parameter.

During the import, the origin key is set to all metadata objects. This key indicates the original location of the object (server and the project). This has a special use in the case of datasets & data import. import first takes a look at what datasets currently are in the project and compares them with datasets that are about to be imported. Datasets that are not present in the destination project will be imported automatically. In the case of datasets that are present in the destination project, 3 cases might occur:

if they have the same name and origin, the dataset will not be imported
if they have the same name but different origin, a warning is shown and the dataset will not be imported
if a prefix is specified, all source datasets will be imported

Parameter name	Type	Optionality	Description
`project`	string	REQUIRED	Project ID of the project from which files will be imported
`dump`	boolean	VARIES	import project from local dump `project` must be specified
`serverSide`	boolean	VARIES	performs import of specified project on server `project` must be specified
`cascadeFrom`	string	OPTIONAL	cascade import object and all objects it references see usage examples below
`prefix`	string	OPTIONAL	specify a prefix for the metadata objects and data files
`dashboards`	boolean	OPTIONAL	import dashboards only
`dataPermissions`	boolean	OPTIONAL	import data permission only
`datasets`	boolean	OPTIONAL	import datasets only
`exports`	boolean	OPTIONAL	import exports only
`indicators`	boolean	OPTIONAL	import indicators only
`indicatorDrills`	boolean	OPTIONAL	import indicator drills only
`markers`	boolean	OPTIONAL	import markers only
`markerSelectors`	boolean	OPTIONAL	import marker selectors only
`metrics`	boolean	OPTIONAL	import metrics only
`projectSettings`	boolean	OPTIONAL	import project settings only
`shares`	boolean	OPTIONAL	import shares only
`views`	boolean	OPTIONAL	import views only
`force`	boolean	OPTIONAL	ignore source project `validate` errors and proceed with import anyway skip failed dataset dumps (for projects with incomplete data) default = false
`skipData`	boolean	OPTIONAL	skip data import default = false

Usage examples:

Cascade import

CODE

// import all objects referenced from catchment_area_view including datasets & data
importProject --project djrt22megphul1a5 --cascadeFrom catchment_area_view

// import all objects referenced from catchment_area_view except including datasets & data
importProject --project djrt22megphul1a5 --cascadeFrom catchment_area_view --dashboards --exports --indicatorDrills --indicators --markerSelectors --markers --metrics --views

// import all objects referenced from catchment_area_dashboard
importProject --project djrt22megphul1a --cascadeFrom catchment_area_dashboard

// import all objects (datasets) referenced from baskets dataset - data model subset
importProject --project djrt22megphul1a5 --force --cascadeFrom baskets

importDatabase

Allows you to create datasets and import data from an external database.

This command reads the database metadata from which datasets are created, then imports the data and saves them as CSV files. You can choose to import either of which with --skipMetadata and --skipData parameters. Please note that this command does not create any metadata objects other than datasets. It's also possible to import only specific tables using the --tables parameter.

The database must be located on a running database server which is accessible under a URL. This can be on localhost, or anywhere on the internet. Valid credentials to the database are necessary.

So far, the command supports these database engines:

PostgreSQL (https://www.postgresql.org/)

Parameter name	Type	Optionality	Description	Constraints
`engine`	enum	REQUIRED	name of the database engine	[postgresql]
`host`	string	REQUIRED	database server hostname for local databases, use `localhost`
`port`	integer	REQUIRED	database server port
`schema`	string	OPTIONAL	name of the database schema leave out if your engine does not support schemas, or the schema is `public`
`database`	string	REQUIRED	name of the database
`user`	string	REQUIRED	user name for login to the database
`password`	string	REQUIRED	user's password
`tables`	array	OPTIONAL	list of tables to import leave out if you want to import all tables from the database example = `"orders,clients,stores"`
`skipData`	boolean	OPTIONAL	skip data import default = false
`skipMetadata`	boolean	OPTIONAL	skip metadata import default = false

Usage examples:

CODE

importDatabase --engine postgresql --host localhost --port 5432 --database my_db --user postgres --password test
importDatabase --engine postgresql --host 172.16.254.1 --port 6543 --schema my_schema --database my_db --user postgres --password test --tables orders,clients,stores

loadCsv

Load data from a CSV file into a specified dataset.

loadCsv also offers various CSV input settings. Your CSV file may contain specific features, like custom quotes or separator characters. The parameters with the csv prefix allow you to configure the data load to fit these features, instead of transforming the CSV file to one specific format. Special cases include the csvNull and csvForceNull parameters.

csvNull allows you to specify a value, which will be interpreted as a null value
- e.g. "false" or "_"
csvForceNull then specifies on which columns the custom null replacement should be enforced
- e.g. "name,title,description"

Parameter name	Type	Optionality	Description	Constraints
`file`	string	VARIES	path to the CSV file one of `file`, `s3Uri` or `url` parameters must be specified
`s3Uri`	string	VARIES	URI of an object on AWS S3 to upload (see examples below) one of `file`, `s3Uri` or `url` parameters must be specified
`url`	string	VARIES	HTTPS URL which contains a CSV file to be loaded into the dataset one of `file`, `s3Uri` or `url` parameters must be specified
`dataset`	string	REQUIRED	name of dataset into which the data should be loaded
`mode`	enum	REQUIRED	data load mode `incremental` mode appends the data to the end of the table `full` mode truncates the table and loads the table anew	`[incremental, full]`
`csvHeader`	boolean	OPTIONAL	specifies if the CSV file to upload has a header default = `true`
`csvSeparator`	char	OPTIONAL	specifies the CSV column separator character default = `,`
`csvQuote`	char	OPTIONAL	specifies the CSV quote character default = `"`
`csvEscape`	char	OPTIONAL	specifies the CSV escape character default = `\`
`csvNull`	string	OPTIONAL	specifies the replacement of custom CSV null values
`csvForceNull`	enum	OPTIONAL	specifies which CSV columns should enforce the null replacement
`verbose`	boolean	OPTIONAL	enables more verbose output default = `false`
`multipart`	boolean	OPTIONAL	enables multipart file upload (recommended for files larger than 2 GB) default = false
`gzip`	boolean	OPTIONAL	enables gzip compression default = true

Usage examples:

Please note that your AWS S3 Access Key ID and Secret Access Key must be set using setup command first.

Load CSV from AWS S3

CODE

loadCsv --dataset orders --mode full --s3Uri s3://my-company/data/orders.csv --verbose

Load CSV from HTTPS URL

CODE

loadCsv --dataset orders --mode full --url http://www.example.com/download/orders.csv --verbose

dumpCsv

Dump data from a specified dataset into a CSV file.

Parameter name	Type	Optionality	Description	Constraints
`dataset`	string	REQUIRED	name of the dataset do dump
`force`	boolean	OPTIONAL	overwrites dumped data

dumpProject

Dump project data and metadata to a directory. If the dump is successful, the current dump is opened.

Parameter name	Type	Optionality	Description
`skipMetadata`	boolean	OPTIONAL	skip metadata dump default = false
`skipData`	boolean	OPTIONAL	skip data dump default = false
`force`	boolean	OPTIONAL	overwrites current dump default = false
`nativeDatasetsOnly`	boolean	OPTIONAL	import only native datasets (without origin attribute) default = false
`ignoreFailedDatasets`	boolean	OPTIONAL	skip failed dataset dumps (for projects with incomplete data) default = false

openDump

Open dump of project.

This command has no parameters.

truncateProject

Deletes all metadata and data from the project.

This command has no parameters.

validate

Validate the project's data model and data integrity. An update of dataset definition (metadata) should be followed by a data update. Typically, it helps to make a full data load for an updated dataset (see loadCsv command). During the full load, an original DWH table is dropped and data is loaded into a new table regarding the updated dataset definition.

If a user updates just a metadata model, it can cause an inconsistency between the metadata model and the DWH database model. The validate command is used to detect these problems.

Parameter name

Type

Optionality

Description

Constraints

project

string

OPTIONAL

project ID of other project which will be validated

skipModel

string

OPTIONAL

skip validations of the data model. Model validation compares a metadata definition of dataset with a table definition in DWH database (DDL). This validation is fast, no data are validated.

default = false

skipData

string

OPTIONAL

skip validations of the data itself

default = false

List of violation types:

validation category	violation	violation description
model	MissingTableValidationException	missing table in DWH database for given dataset
model	MissingColumnValidationException	missing column in DWH table that is present in dataset definition
model	NotMatchingDataTypeColumnException	data type of a columns in DWH tables differs from a type in dataset definition
model	MisorderColumnValidationException	order of columns in DWH table does not match order of properties in dataset definition
model	MissingPrimaryKeyColumnValidationException	primary key defined in dataset definition was not found in DWH table
model	UnexpectedColumnValidationException	an extra column was found in DWH table compared with the dataset definition
model	MismatchingForeignKeyDataTypeException	a foreign key column data type must be the same as a data type of referenced primary key
data	NotUniquePrimaryKeyValidationException	duplicated values has been found in a primary key column
data	NanInNumericColumnValidationException	NaN value has been found in a numeric column
data	ReferenceIntegrityValidationException	compares foreign key values with a referenced values of a primary key column. Missing values are reported.

Opened dump

addMetadata

Add a new metadata object and upload it to the project. The file must be located in a currently opened dump, and in the correct directory.

If the --objectName parameter is not specified, addMetadata will add all new objects in the current dump.

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	OPTIONAL	name of the object (with or without .json extension)

Updating existing metadata objects

When modifying already added (uploaded) metadata objects use pushProject command for uploading modified objects to the project.

createMetadata

Create a new metadata object.

At this moment, only dataset type is supported. Datasets are generated from a provided CSV file.

Parameter name	Type	Optionality	Description	Constraints
`type`	enum	REQUIRED	type of the object to create	`[dataset]`
`objectName`	string	REQUIRED	name of the object to create
`subtype`	enum	VARIES	name of the object copy (with or without .json extension) required only for `dataset` type	`[basic, geometryPoint, geometryPolygon]`
`file`	string	VARIES	path to the CSV file (located either in dump, or anywhere in the file system) required only for `dataset` type
`primaryKey`	string	VARIES	name of the CSV column that will be marked as primary key required only for `dataset` type
`geometry`	string	VARIES	name of the `geometry` key required only for `geometryPolygon` subtype
`csvSeparator`	char	OPTIONAL	specifies the CSV column separator character default = `,`
`csvQuote`	char	OPTIONAL	specifies the CSV quote character default = `"`
`csvEscape`	char	OPTIONAL	specifies CSV escape character default = `\`

Usage examples:

CODE

createMetadata --type dataset --subtype basic --objectName "baskets" --file "baskets.csv" --primaryKey "basket_id"
createMetadata --type dataset --subtype geometryPoint --objectName "shops" --file "shops.csv" --primaryKey "shop_id"
createMetadata --type dataset --subtype geometryPolygon --objectName "district" --geometry "districtgeojson" --file "district.csv" --primaryKey "district_code"

removeMetadata

Remove a metadata object from the project and from the dump. The file must be located in a currently opened dump, and must not be new.

Parameter name

Type

Optionality

Description

Constraints

objectName

string

VARIES

name of the object (with or without .json extension)

one of objectName, objectId or orphanObjects parameters must be specified

objectId

string

VARIES

ID of the object

orphanObjects

boolean

VARIES

prints a sequence of removeMetadata commands to delete orphan metadata objects

orphan object is an object not referenced from any of the project's views, or visible anywhere else in the app

renameMetadata

Rename a metadata object in a local dump and on the server. If the object is referenced in some other objects by URI (/rest/projects/$projectId/md/{objectType}?name=), the references will be renamed as well.

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	REQUIRED	current name of the object (with or without .json extension)
`newName`	string	REQUIRED	new name of the object (with or without .json extension)

copyMetadata

Create a copy of an object existing in a currently opened dump.

This command unwraps the object from a wrapper, renames it and removes generated common syntax keys. If the objectName and newName arguments are the same, the object is unwrapped only.

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	REQUIRED	current name of the object (with or without .json extension)
`newName`	string	REQUIRED	name of the object copy (with or without .json extension)

restoreMetadata

Restore metadata objects from a local dump onto the server.

If the --objectName parameter is not specified, restoreMetadata will restore, add and push all changed objects in the dump.
For objects present on the server and not in the local dump, restoreMetadata prints a list of removeMetadata commands to delete server objects.

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	OPTIONAL	name of the object (with or without .json extension)

pushProject

Upload all modified files (data & metadata) to the project.

This command basically wraps the functionality of loadCsv. It collects all modified metadata to upload and performs a full load of CSV files.

Parameter name	Type	Optionality	Description
`skipMetadata`	boolean	OPTIONAL	skip metadata push default = false
`skipData`	boolean	OPTIONAL	skip data push default = false
`skipValidate`	boolean	OPTIONAL	skip the run of `validate` after push default = false
`verbose`	boolean	OPTIONAL	enables more verbose output default = false
`multipart`	boolean	OPTIONAL	enables multipart file upload (recommended for files larger than 2 GB) default = false
`gzip`	boolean	OPTIONAL	enables gzip compression default = true

status

Check the status of a currently opened dump against the project on the server.

This command detects files which have been locally or remotely changed, are missing in a dump, and also detects files which have a syntax error or constraint violations.

When --remote is used, the command only displays metadata content on the server.

Parameter name

Type

Optionality

Description

Constraints

remote

boolean

OPTIONAL

list metadata content on the server

default = false

fetch

Fetch objects that have changed on the server and update local objects.

Server objects are compared with local objects, and the following action can happen:

an object changed on the server and not locally modified is dumped
an object changed on the server and locally modified creates conflict (see conflict)
an object deleted on the server and not locally modified is deleted
an object deleted on the server and locally modified is unwrapped and can be added again with addMetadata

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	OPTIONAL	name of the object to fetch (with or without .json extension)
`force`	boolean	OPTIONAL	overwrite local changes

Conflict

A conflict occurs when an object is modified on the server and locally. Conflicts are written to metadata objects and have to be resolved.

Conflict example:

CODE

...
			"visualizations": {
<<<<<<< local
                "grid": false
=============
                "grid": true
>>>>>>> server
            },
...

applyDiff

Create and apply metadata diff between two live projects.

This command compares all metadata objects of the currently opened project and the project specified in the --sourceProject command and applies changes to the currently opened dump. Metadata objects in the dump can be either:

added (completely new objects that aren't present in the currently opened project)
modified
deleted (deleted objects not present in the sourceProject)

When the command finishes, you can review the changes applied to the dump using either status or diff commands. The command then tells you to perform specific subsequent steps. This can be one of (or all) these commands:

addMetadata (to add the new objects)
pushProject (to push the changes in modified objects)
removeMetadata (to remove the deleted objects - a command list which must be copypasted to Shell is generated )

Parameter name

Type

Optionality

Description

Constraints

sourceProject

string

REQUIRED

Project ID of the source project

objectTypes

array

OPTIONAL

list of object types to be compared

example = "views,indicators,metrics"

diff

Compare local metadata objects with those in the project line by line.

If the --objectName parameter is not specified, all wrapped modified objects are compared.

Parameter name	Type	Optionality	Description	Constraints
`objectName`	string	OPTIONAL	name of a single object to compare (with or without .json extension)

The command outputs sets of changes - "deltas" done in each object. Each object can have multiple deltas, which are followed by a header with the syntax:

CODE

/{objectType}/{objectName}.json
[ A1 A2 | B1 B2 ]
...

Where:
A1 = start delta line number in the dump file
A2 = end delta line number in the dump file
B1 = start delta line number in the remote file
B2 = end delta line number in the remote file

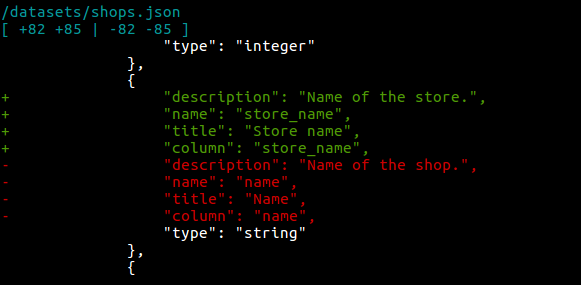

Specific output example:

This means lines 82-85 in the dump object have been added (+) in favour of lines 82-85, which have been removed (−) from the remote object.

Workflow states

Started state

login

setup

Connected to server

openProject

listProjects

createProject

cloneProject

editProject

deleteProject

Opened project

importProject

Usage examples:

Cascade import

importDatabase

Usage examples:

loadCsv

Usage examples:

Load CSV from AWS S3

Load CSV from HTTPS URL

dumpCsv

dumpProject

openDump

truncateProject

validate

Opened dump

addMetadata

createMetadata

Usage examples:

removeMetadata

renameMetadata

copyMetadata

restoreMetadata

pushProject

status

fetch

Conflict example:

applyDiff

diff
